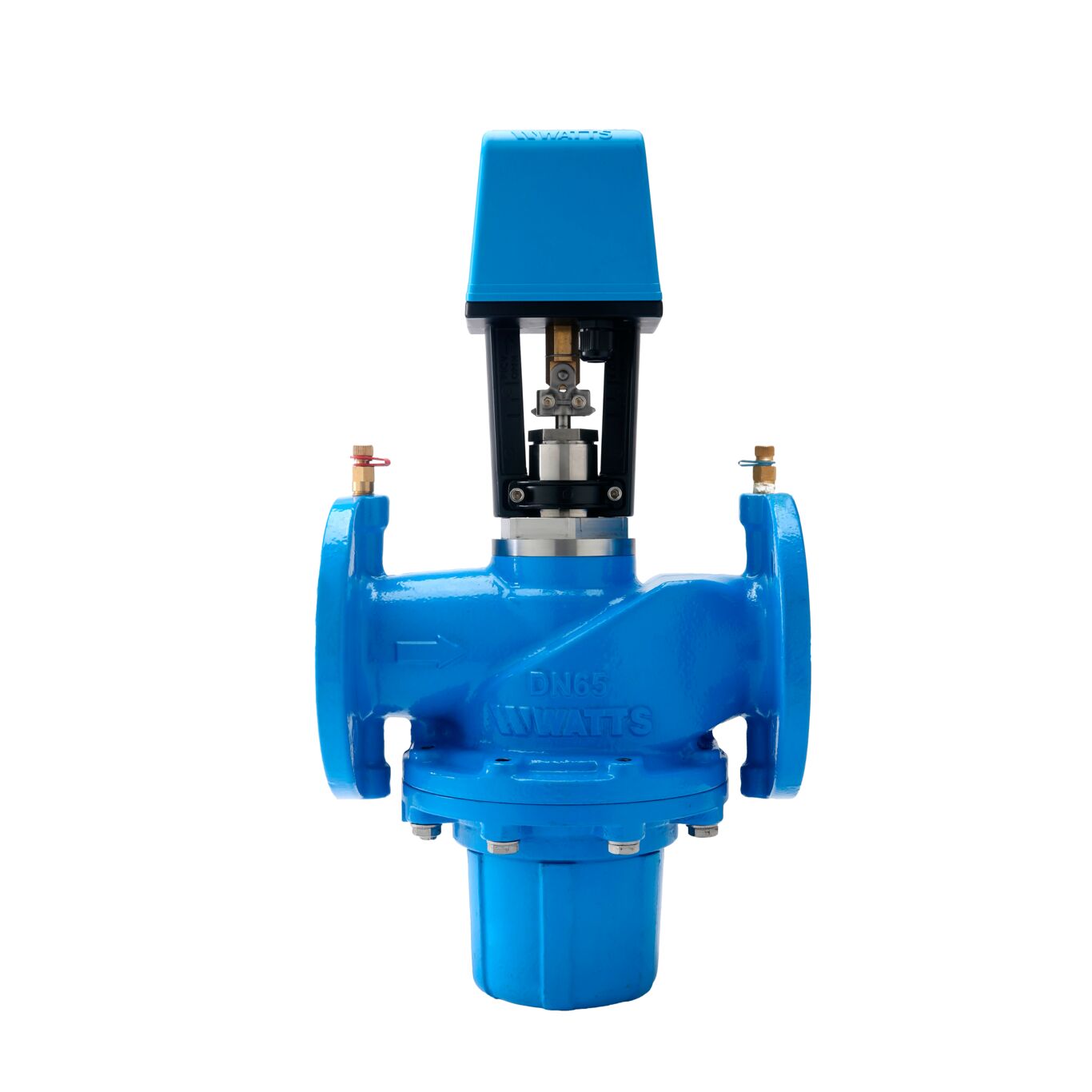

W-PICVXXX-16Q/25Q (DN65-DN150)
Pressure Independent Control valve
Pressure Independent Control valve is designed for terminal equipment in AHU, PAU or MAU systems and for terminal equipment such as plate heat exchanger in heating systems. It is used to regulate the flow and simultaneously keep the differential pressure at both ends of the valve constant. Since the valve avoids flow fluctuation cased by the opening or closing of other equipment, the system is able to be stable, efficient and energy-saving.
Features
- self-balancing valve core realizes easy shutoff; V-ring sealing and self-compensating spring result in higher abrasion resistance and longer service life;Electronic preset of maximum flow facilitates on-site commissioning
- Fault auto-detection and alarm function, over load protection for power supply;Stroke auto-detection; Manual adjust lever for convenient on-site commissioning and troubleshooting
- Pre and Back Differential Pressure Gauge with Adjustment and Differential Pressure Control; spring is isolated from water, extending service life; spring is isolated from water, extending service life
- Equivalent percentage control characteristics; keep the differential pressure constant at the two ends of the regulator valve;
