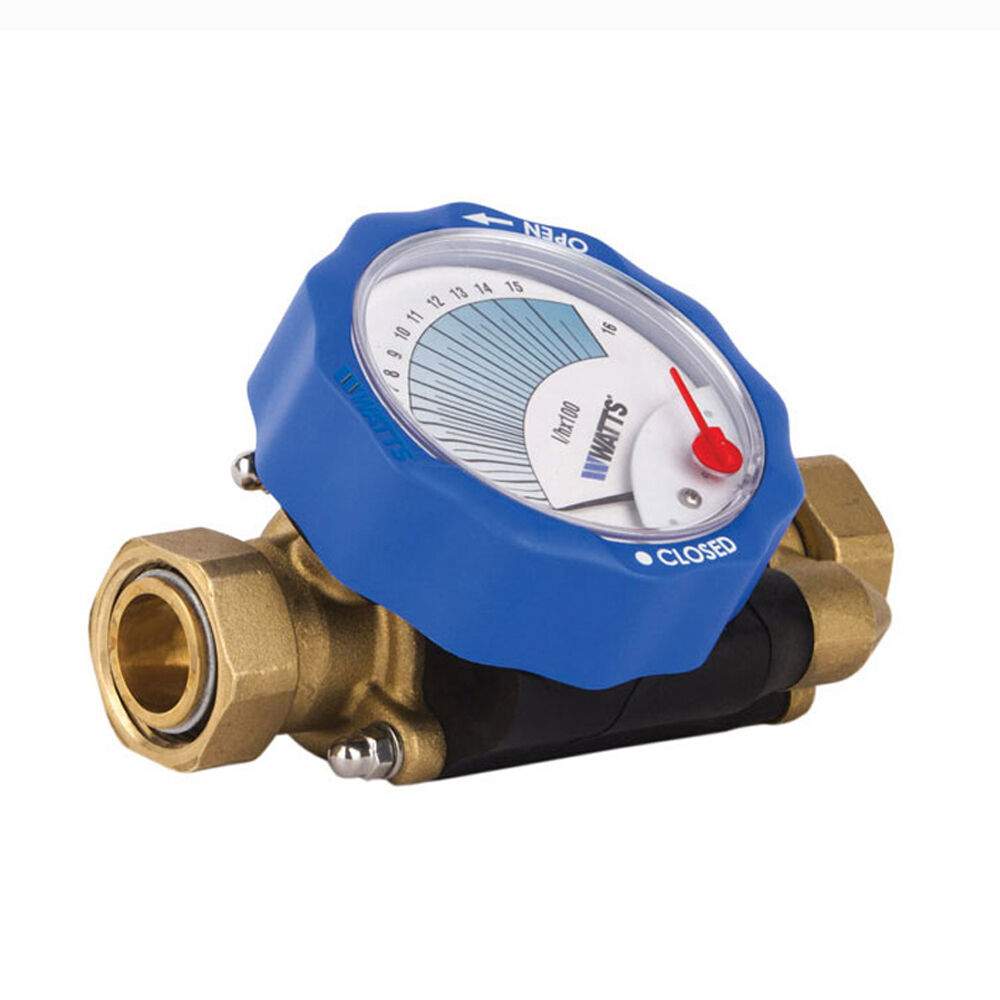

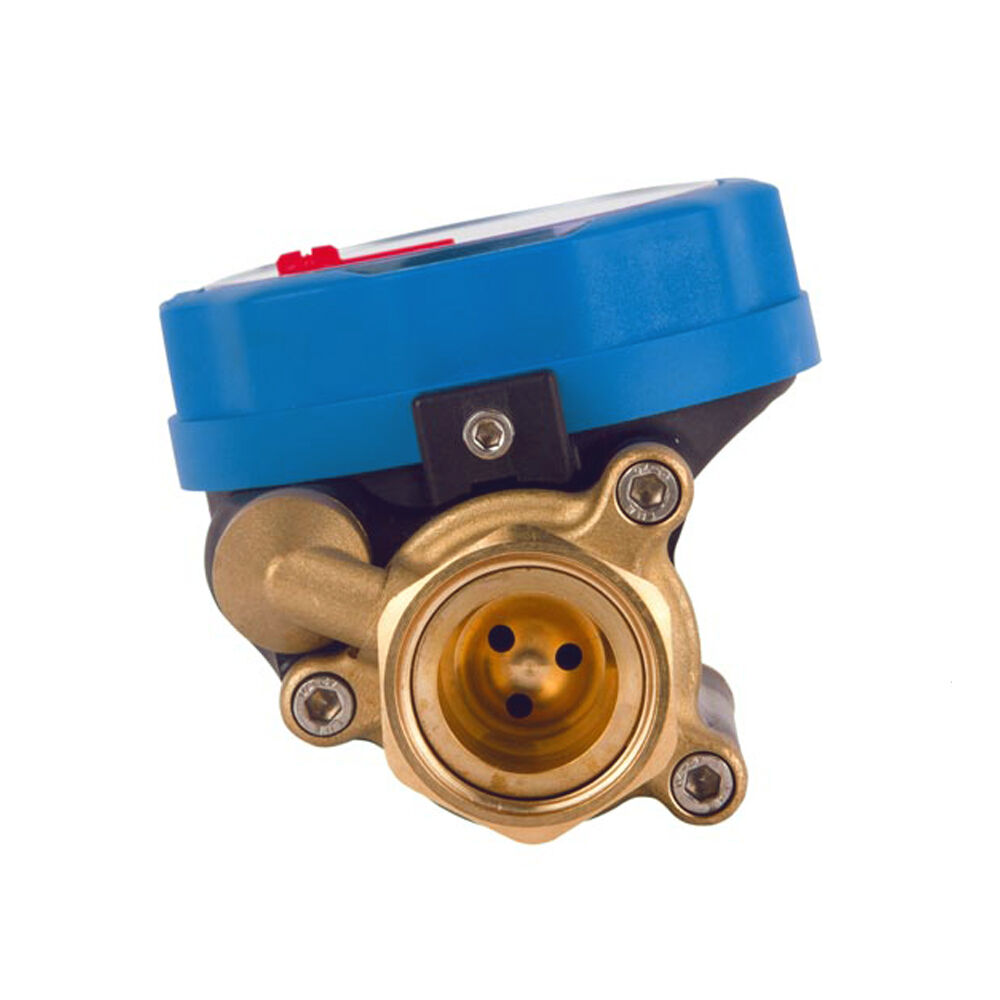

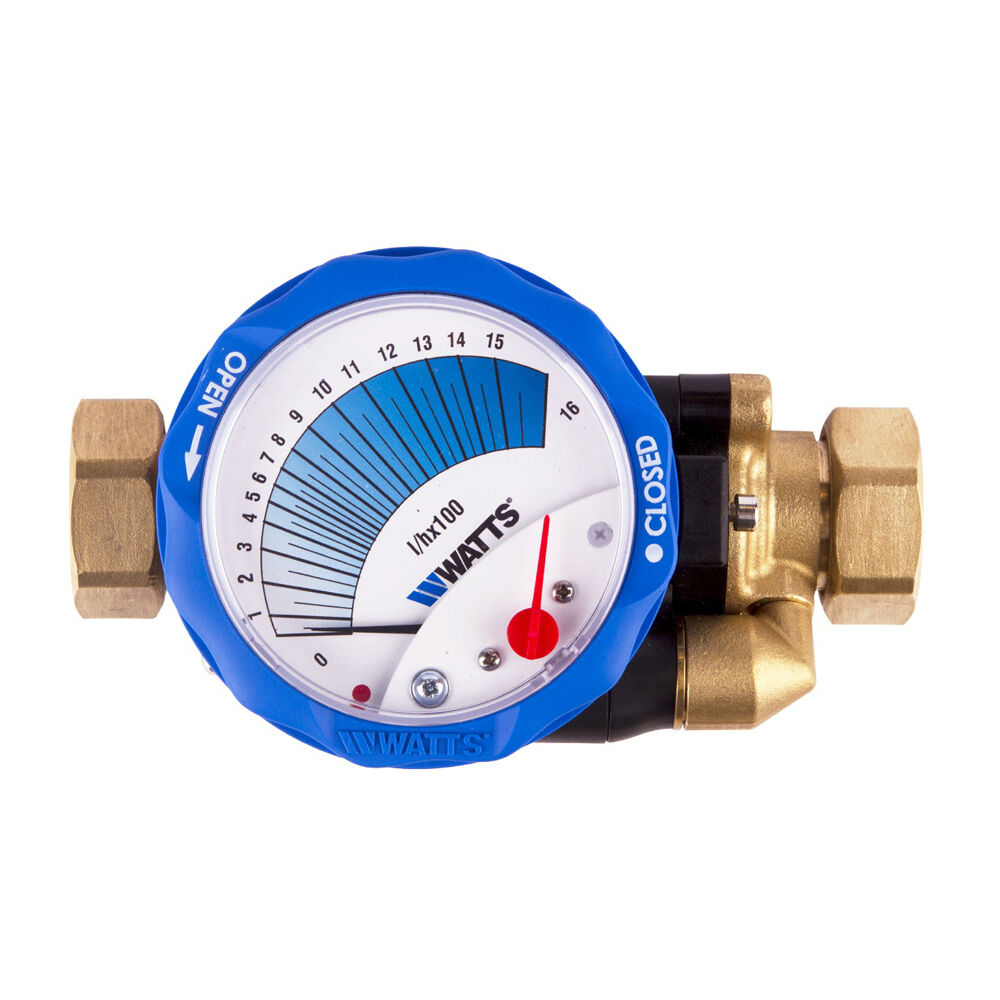

iDROSET CF
×
![]()
Static balancing valve
Static balancing and control valve Series CF Watts Brand with free nut connection from DN15 to DN50 for heating, cooling and domestic water distribution systems. Brass and polyamide body. New patented technology that allows to set and read instantly the flow rate on board without the requirement of special tools. Shut-off function. Lock of the hand wheel. Indication of the flow rate set point by a manual red pointer.
Features
- Balancing and control valve with threaded connections for heating and cooling distribution systems.
- Shut-off function. No additional measurement tools required. Brass and composite body.
- Fluids: water with glycol up to 50%.
- PN: 16 bar.
- Operating temperature range: from -10 to 110°C.
| Type | Part Number | DN | Kvs | Flow rate (l/h) | Weight (Kg) |
| CF | PAP-S015 | 1/2" | 1,7 | 35/700 | 1,0 |
| CF | PAP-S020 | 3/4" | 1,7 | 35/700 | 1,0 |
| CF | PAP-M025 | 1" | 4,4 | 50/1600 | 1,1 |
| CF | PAP-L032 | 1 1/4" | 14 | 250/6000 | 2,6 |
| CF | PAP-L040 | 1 1/2" | 14 | 250/6000 | 2,6 |
| CF | PAPXL050 | 2" | 25 | 400/10000 | 5,1 |
