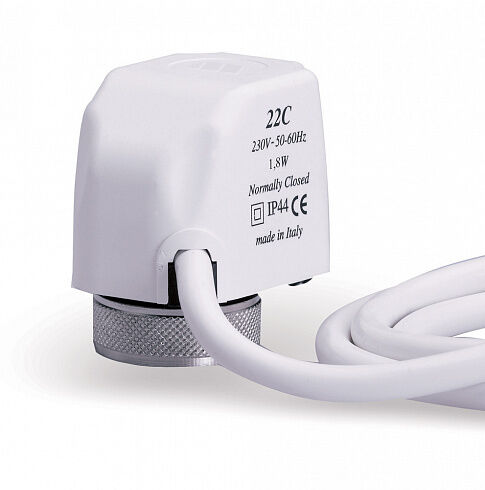

22C

This compact electrothermic actuator with on/off action is compatible with thermostatic adaptable, fan coil, and manifold valves. Cap made of flame retardant plastic. Nickel-plated brass threaded ring nut M30x1.5. Models available as NO (normally open) and NC (normally closed) for 230 or 24 V power supply. Stroke: 3.5 mm. Nominal closing force: 100N (NC) – 80N (NO). Operating temperature range 0 to 50°C. 4 poles cable version complete of auxiliary microswitch (NO4 – NC4). Auxiliary microswitch not energized, inductive load: maximum 700 mA. IP44 in vertical position. Available models: 22C230NC2 Normally closed, 230V, 2-wire 22C24NC2 Normally closed, 24V, 2-wire 22C230NC4 Normally closed, 230V, 4-wire 22C24NC4 Normally closed, 24V, 4-wire 22C230NA2 Normally open, 230V, 2-wire 22C24NA2 Normally open, 24V, 2-wire 22C230NA4 Normally open, 230V, 4-wire 22C24NA4 Normally open, 24V, 4-wire
