007DCDA-OSY-CFM 3
Part of the 007DCDA Series
Ordering Code: 0062513
UPC: 098268316803

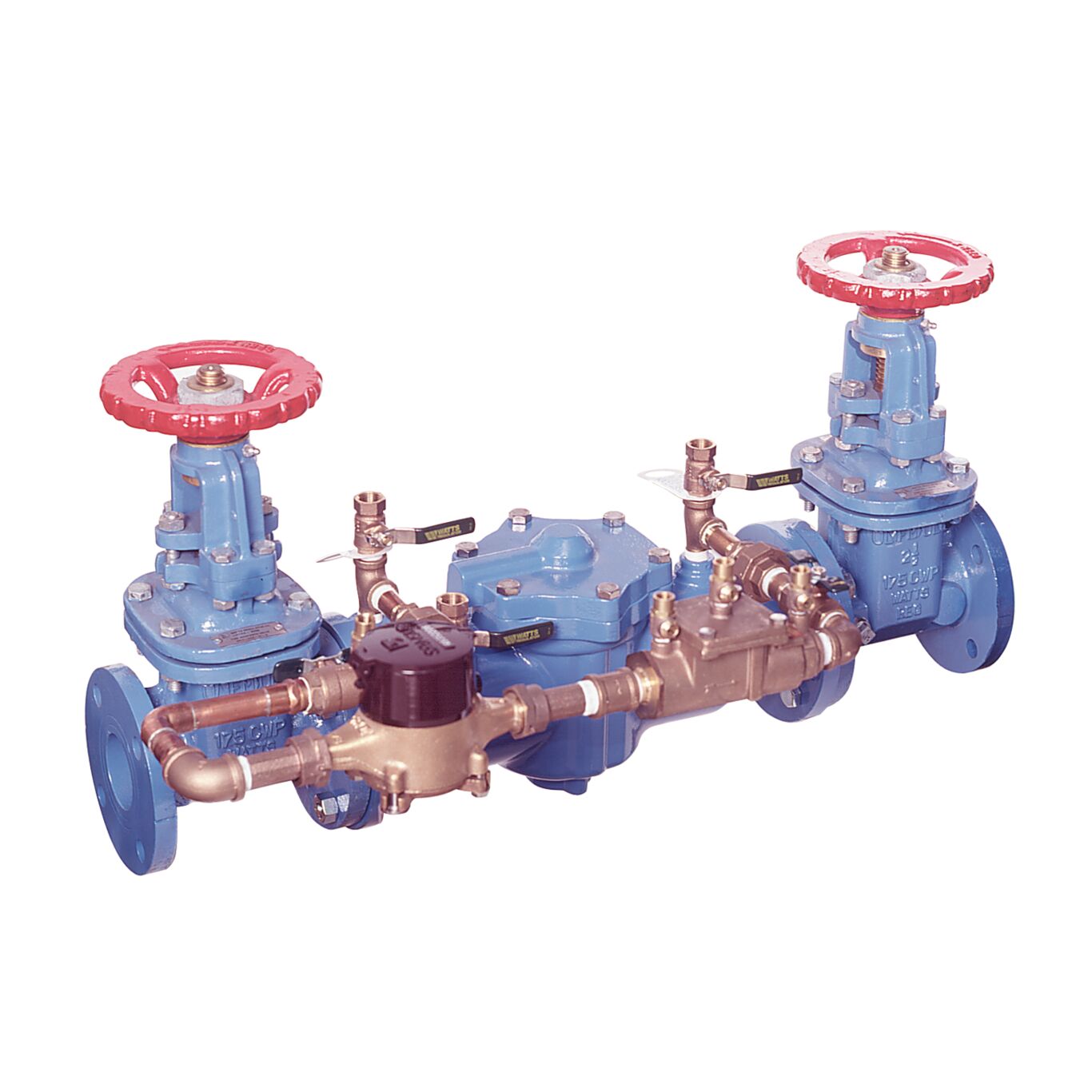

3 In Cast Iron Double Check Detector Assembly Backflow Preventer, OSY Shutoff, Cubic Feet Meter, Single Top Entry, Epoxy Coated Using ArmorTek Technology
This 3 inch double check detector backflow preventer assembly prevents the backflow of non-health hazard fire protection system substances from being pumped or siphoned into the potable water supply. It incorporates a cubic meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. It consists of a fused epoxy coated cast iron unibody using ArmorTek(TM) coating technology for advanced corrosion resistance construction. Its modular check design facilitate simple and easy installation and maintenance. The coating on this backflow assembly uses ArmorTek technology to resist corrosion due to microbial induced corrosion (MIC) or exposed metal substrate. Maximum working pressure is 175 psi (12.06 bar).
Features
- Utilizes advanced ArmorTek coating technology to resist corrosion of internals
- The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Compact design
- 150 pound ANSI/AWWA CL D flanged
- Outside stem and yoke shutoffs
| Specifications | |
|---|---|
| ArmorTekTechnology | Yes |
| BuyAmericanAct | NO |
| EANUCCCode | 098268316803 |
| MaximumTemperature-Fahrenheit | 110 |
| MaximumWorkingPressure-BAR | 12.10 |
| MaximumWorkingPressure-PSI | 175 |
| MinimumTemperature-Celsius | 0.50 |
| MinimumTemperature-Fahrenheit | 33 |
| TrademarkName-Primary | None |
