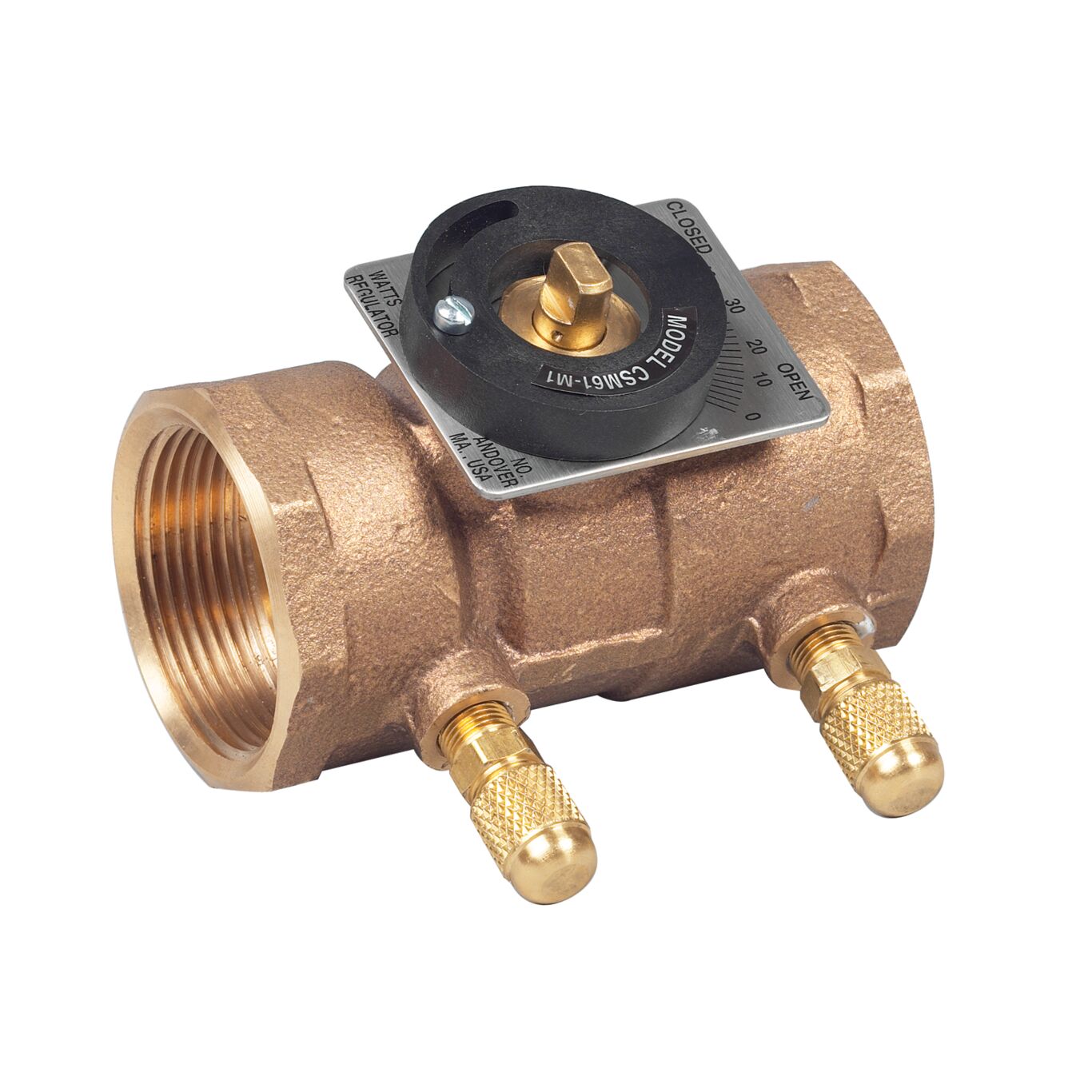

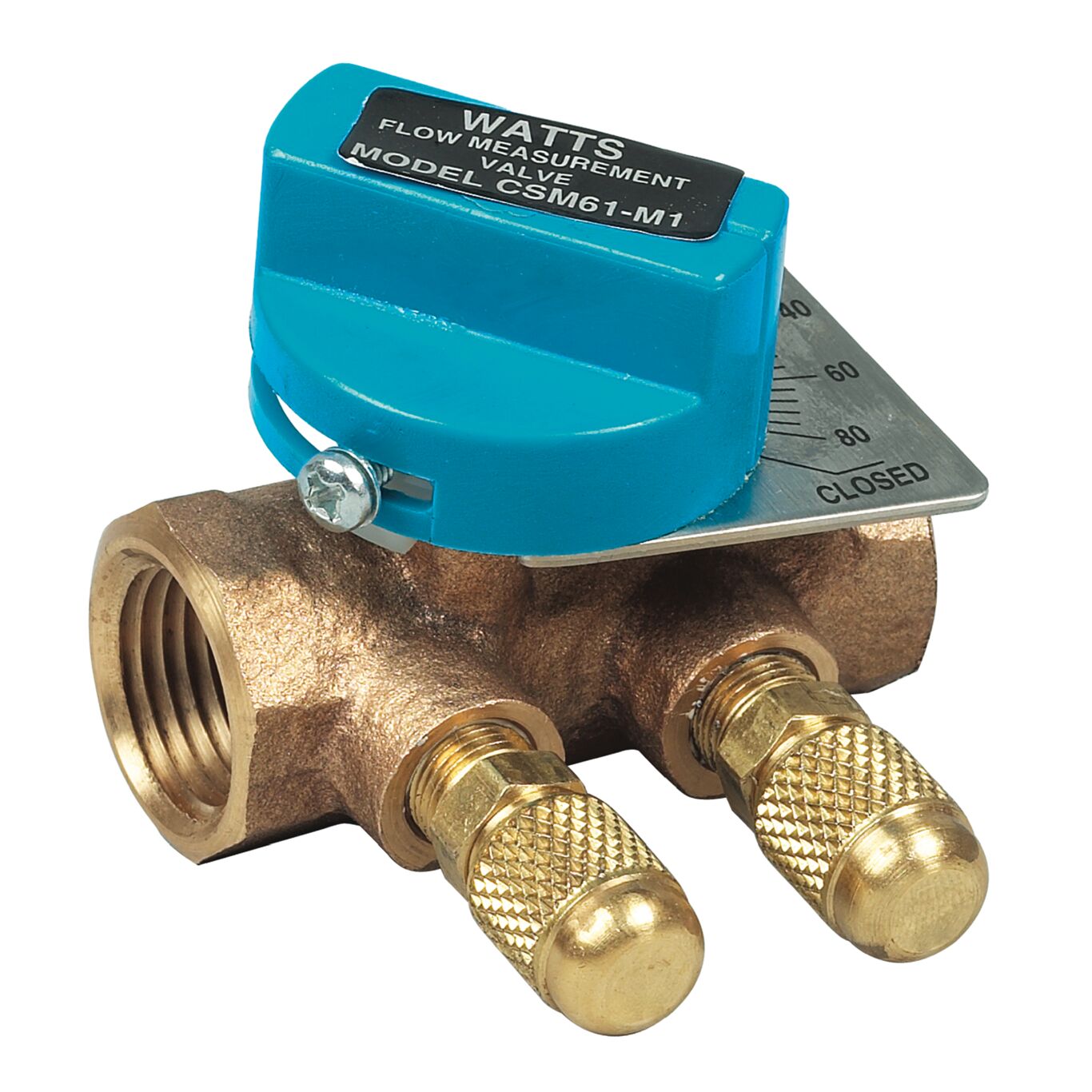

CSM-61-T
Flow Measurement Valves
Series CSM-61-T flow measurement valves are designed for application on low or medium flow rate HVAC units recirculation system. Their compact size allows for easy installation and use in crowded piping compartments. The CSM-61-T's ball-type design, extended throttling range, and large indicator plate, make for accurate flow measurement, even in very low flow ranges. The LFCSM-61-T's positive memory feature is easy to see, access, and operate, facilitating system balancing and flow measurement. These valves are also bi-directional, so there is no chance of installing the valve in the incorrect flow direction.
Features
- For low or medium flow rate HVAC units recirculation system
- Use in fan coil units, water source heat pumps, reheat coils, panel coils, small branch lines, unit heaters and ventilators, finned radiation, small domestic hot water lines, and small pumps
- Designed for accurate flow measurement, even in very low flow ranges. Bi-directional design.
- User friendly positive memory feature facilitates system balancing and flow measurement
