LFTP300
Lead Free* Trap Primers

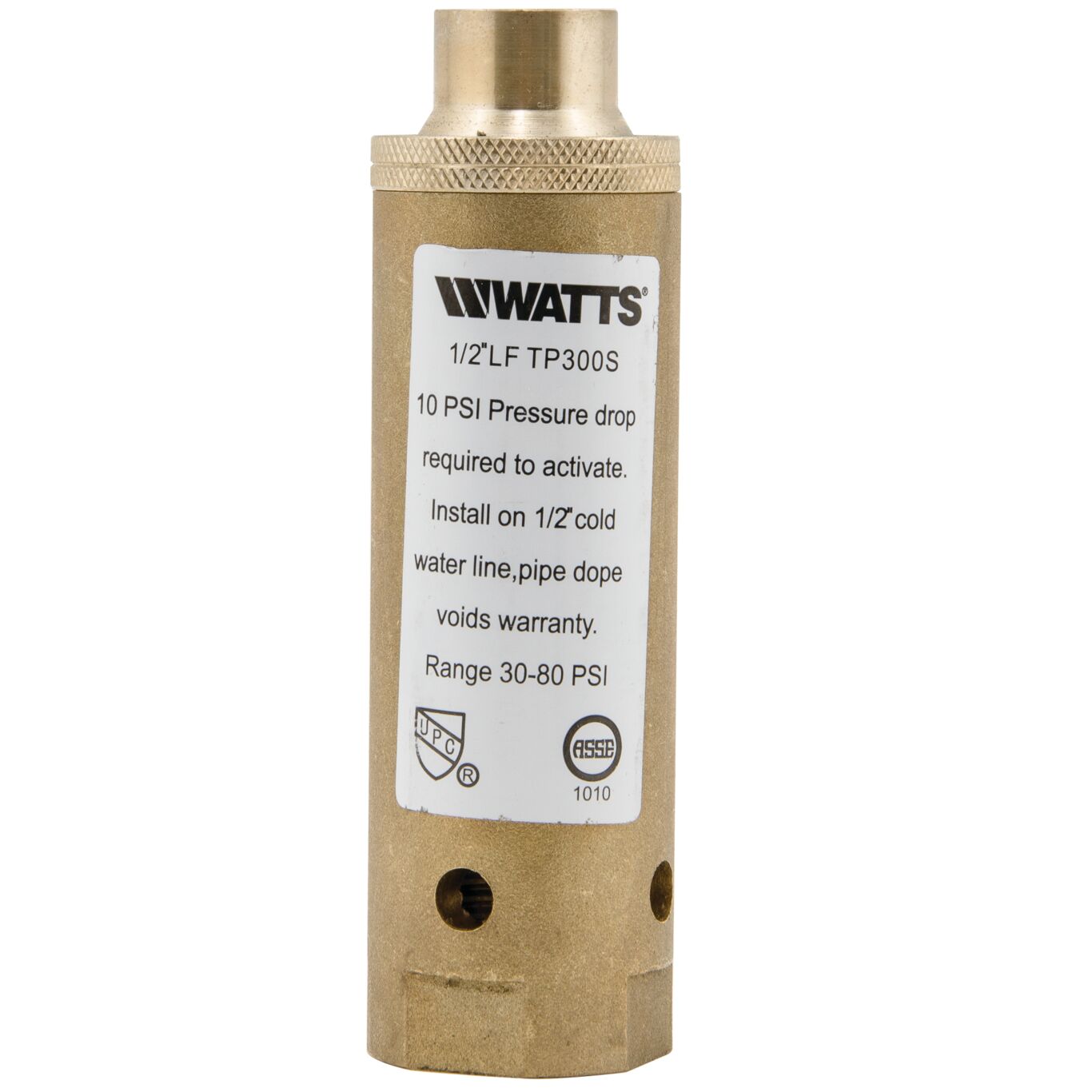

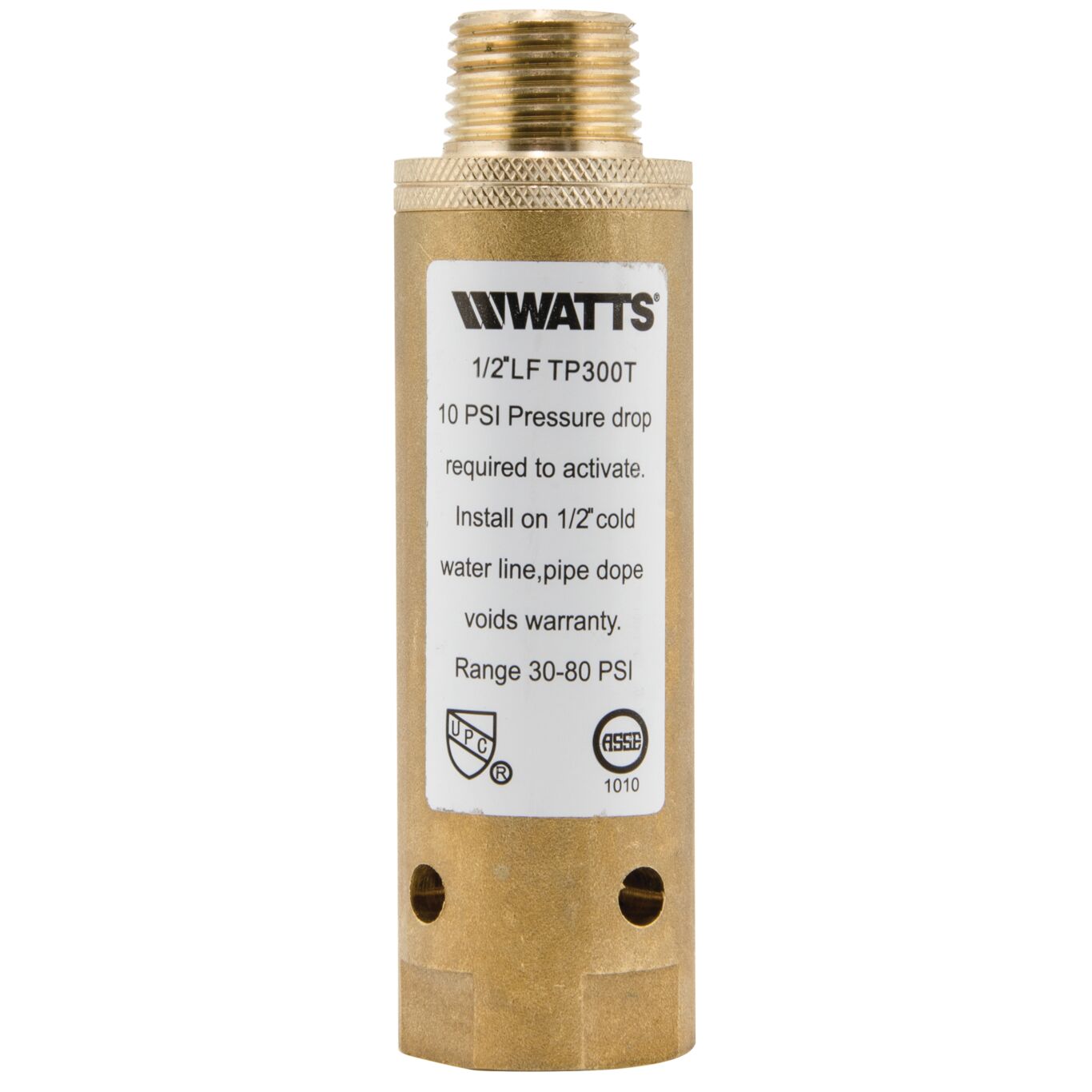

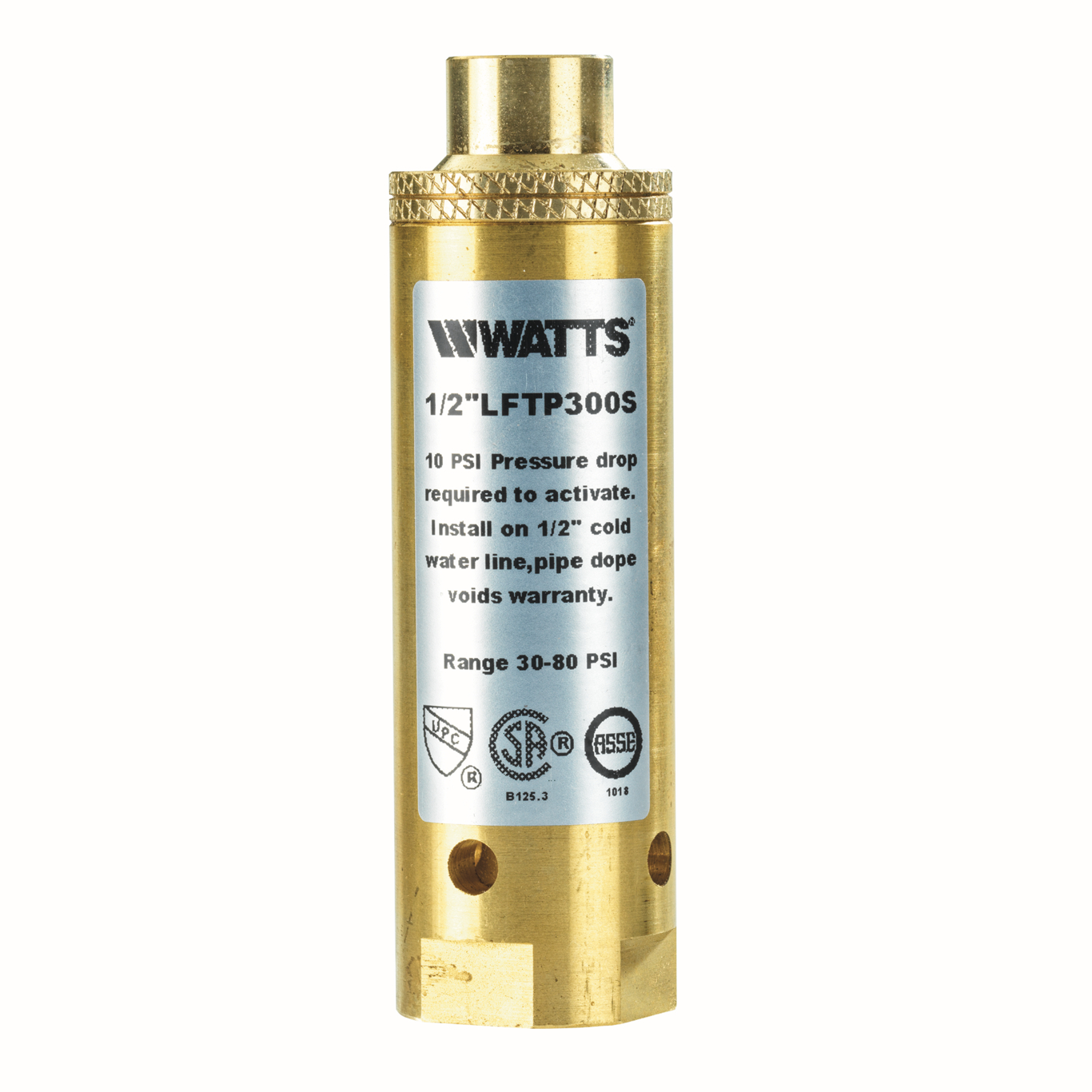

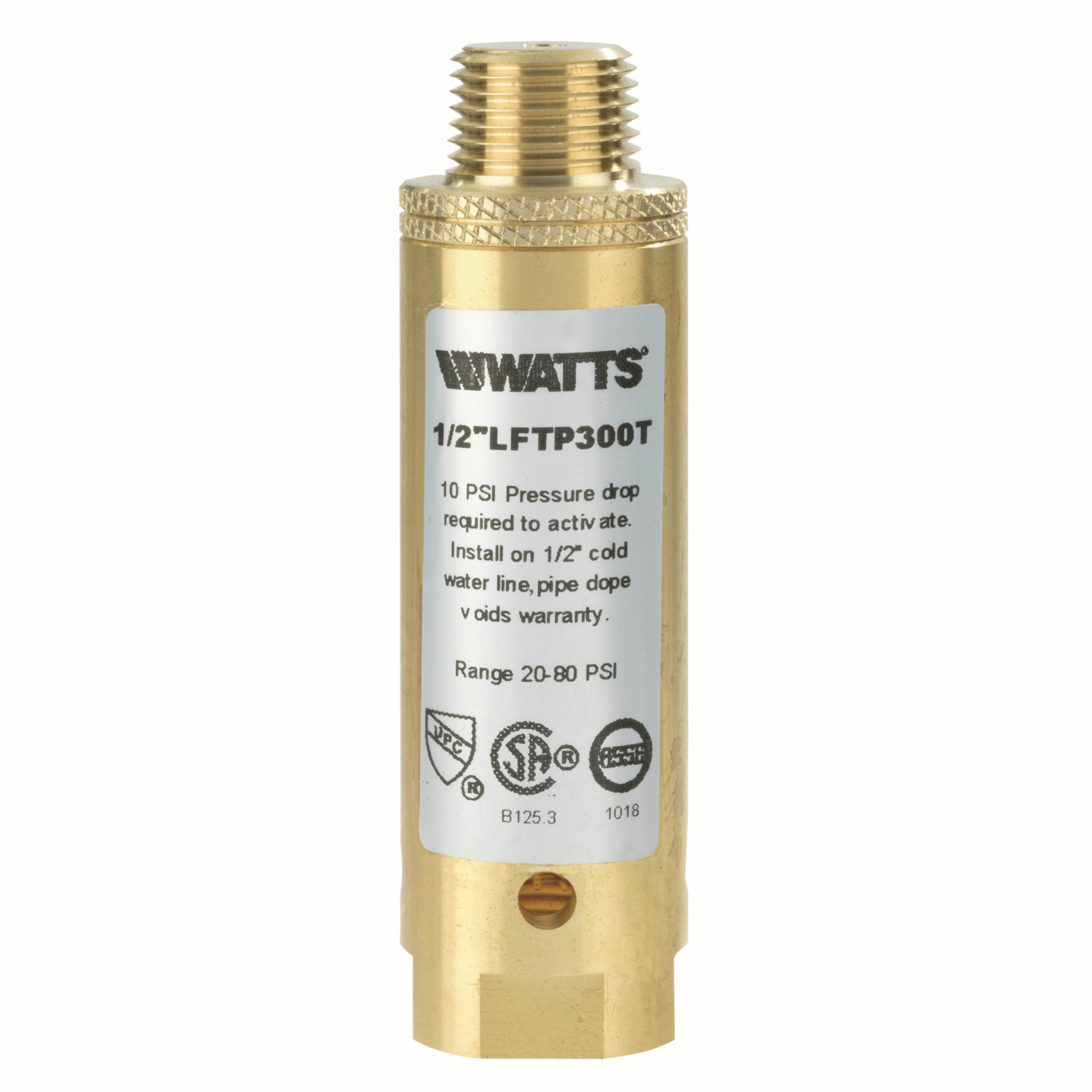

Lead Free* Series LFTP300 trap primers are installed in plumbing systems to prevent floor drain traps from losing their water seal by evaporation. It operates by sensing the pressure drop in the supply line from downstream fixtures or appliances. This trap primer features Lead Free* construction to comply with Lead Free* installation requirements and incorporates a built-in vacuum breaker which does not satisfy compliance to ASME A112.1.2. The minimum supply pressure must exceed 25 psi (172 kPa). The maximum supply pressure is 125 psi (8.6 bar).
Features
- Prevents floor drain traps from losing their water seal by evaporation, which helps prevent backflow of sewer gas
- Built-in vacuum breaker
- Lead free*
- Threaded or solder inlet connection
Literature
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
