DRV

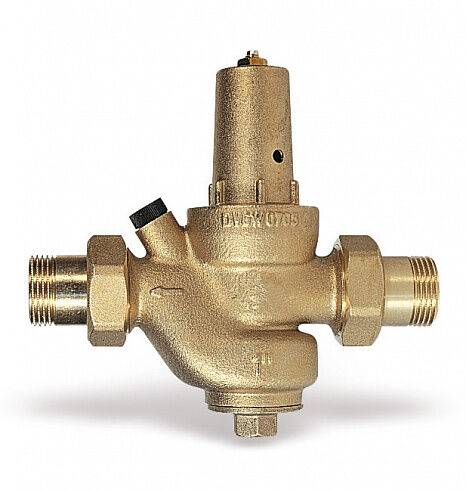

Pressure Reducing Valve
Diaphragm pressure reducing valve with compensated seat and complete with unions. CW617N brass body and cap. Stainless steel strainer. Polymer valve seat. Max. inlet pressure: 25 bar. Adjustable downstream pressure: 1.5÷6 bar. Can be used for water, air and neutral gases up to 60°C, in accordance to DVGW up to 30°C. Pressure drops less than 1.3 bar at characteristic flow rate. Noise < 20 dB - Class 1 according with DIN 52218. LAG (DN 15÷32) Compliant with DVGW, SVGW. Metallic materials in accordance with UBA LIST.
Features
- Sand blasted Brass Cap
