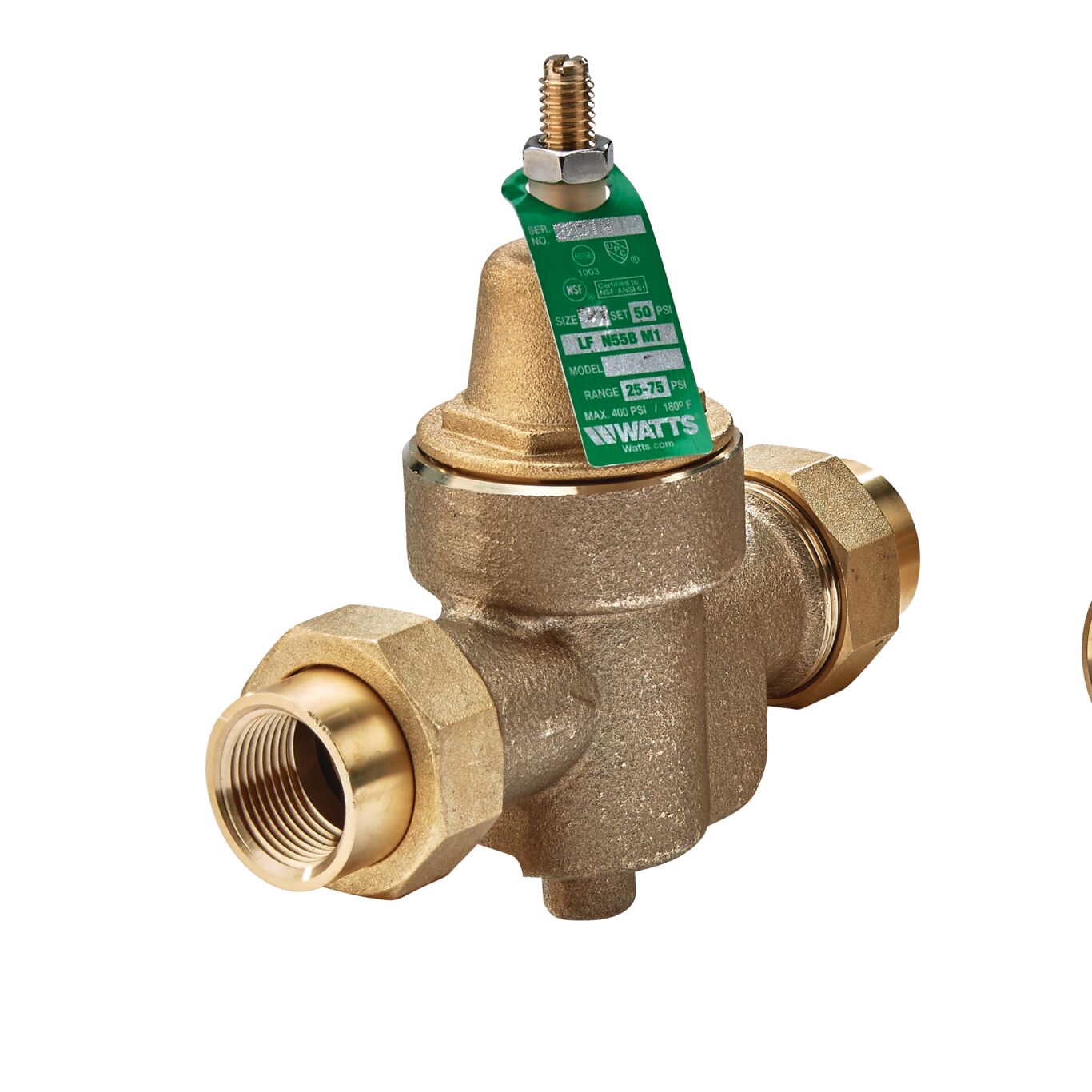

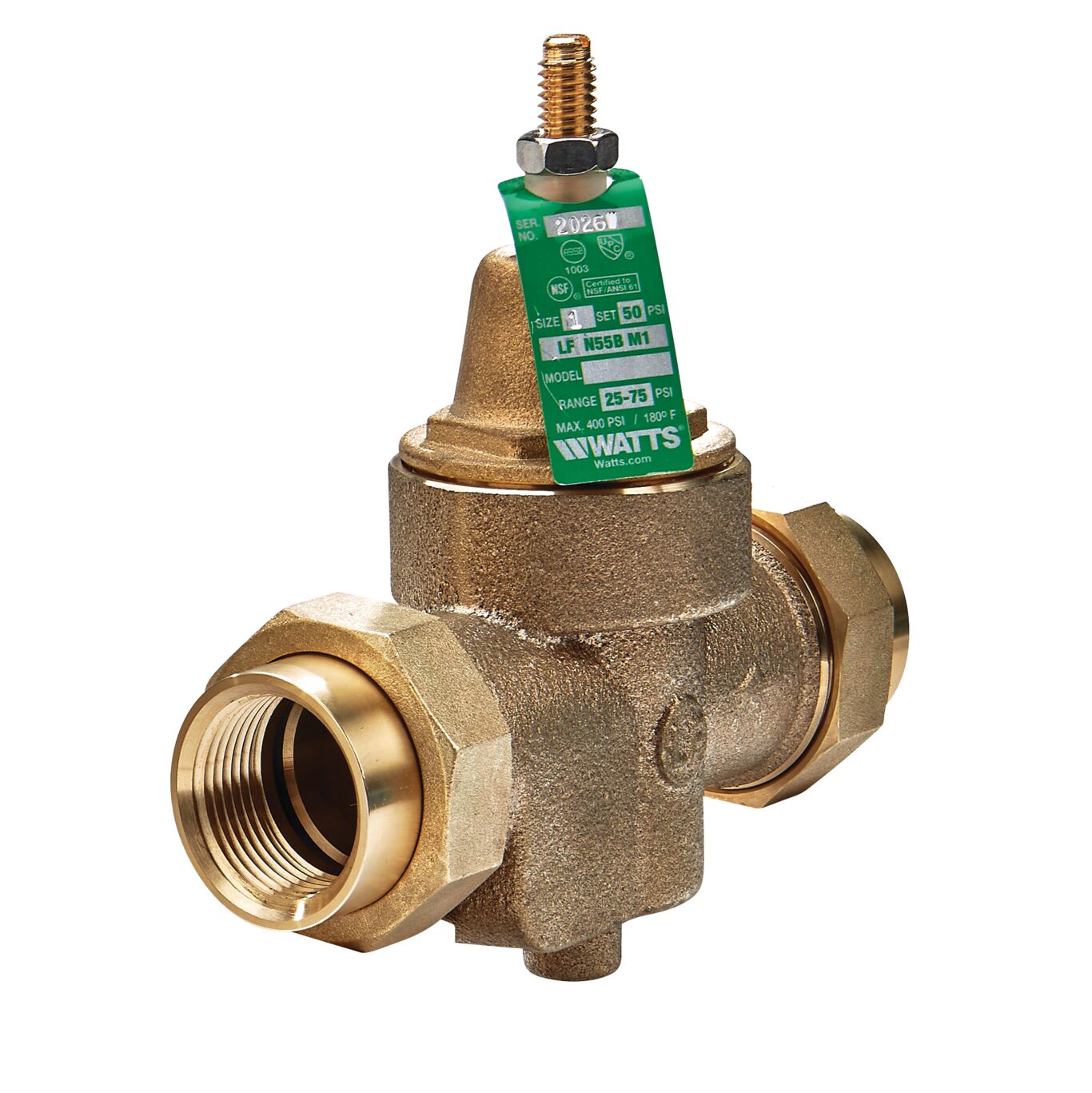

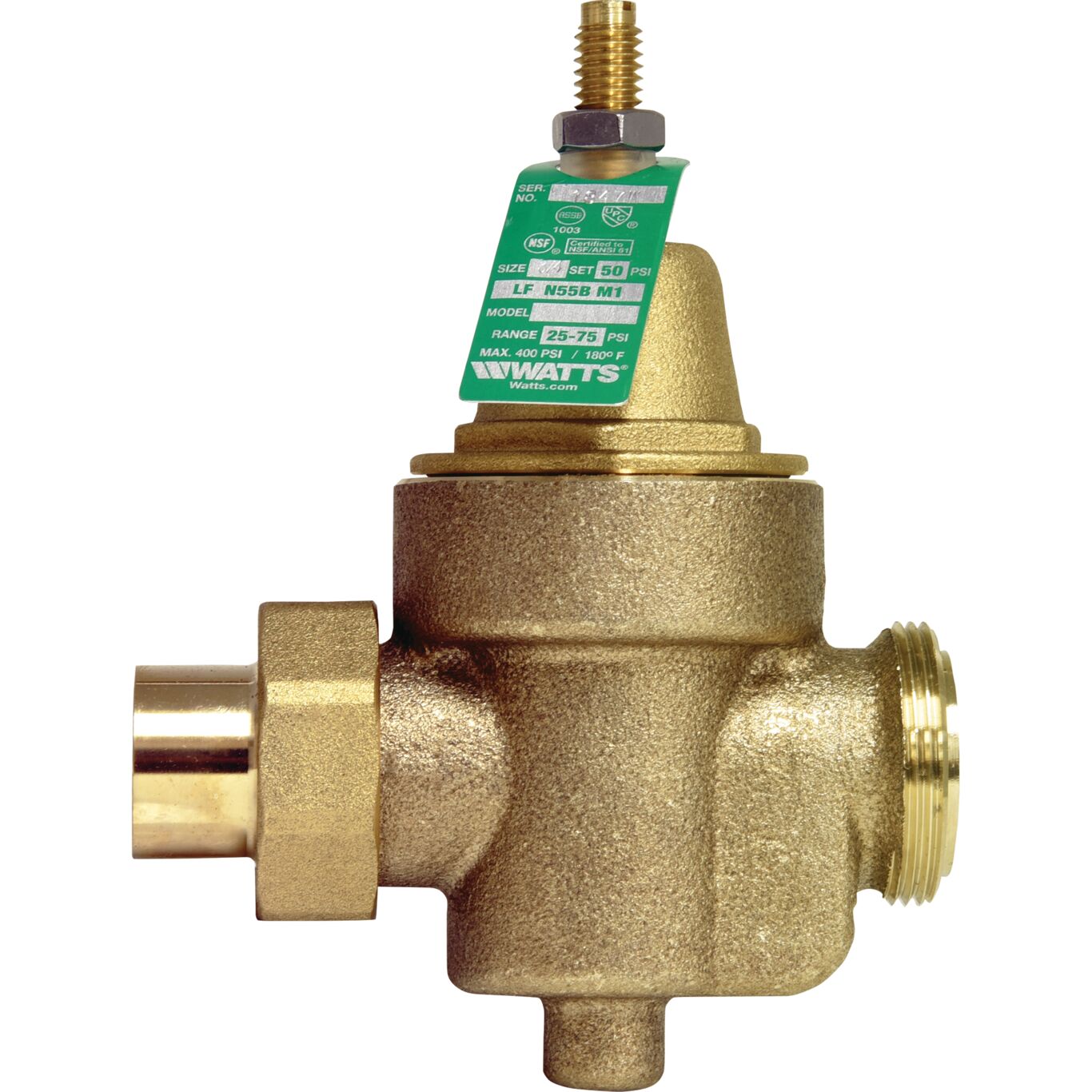

LFN55B-M1

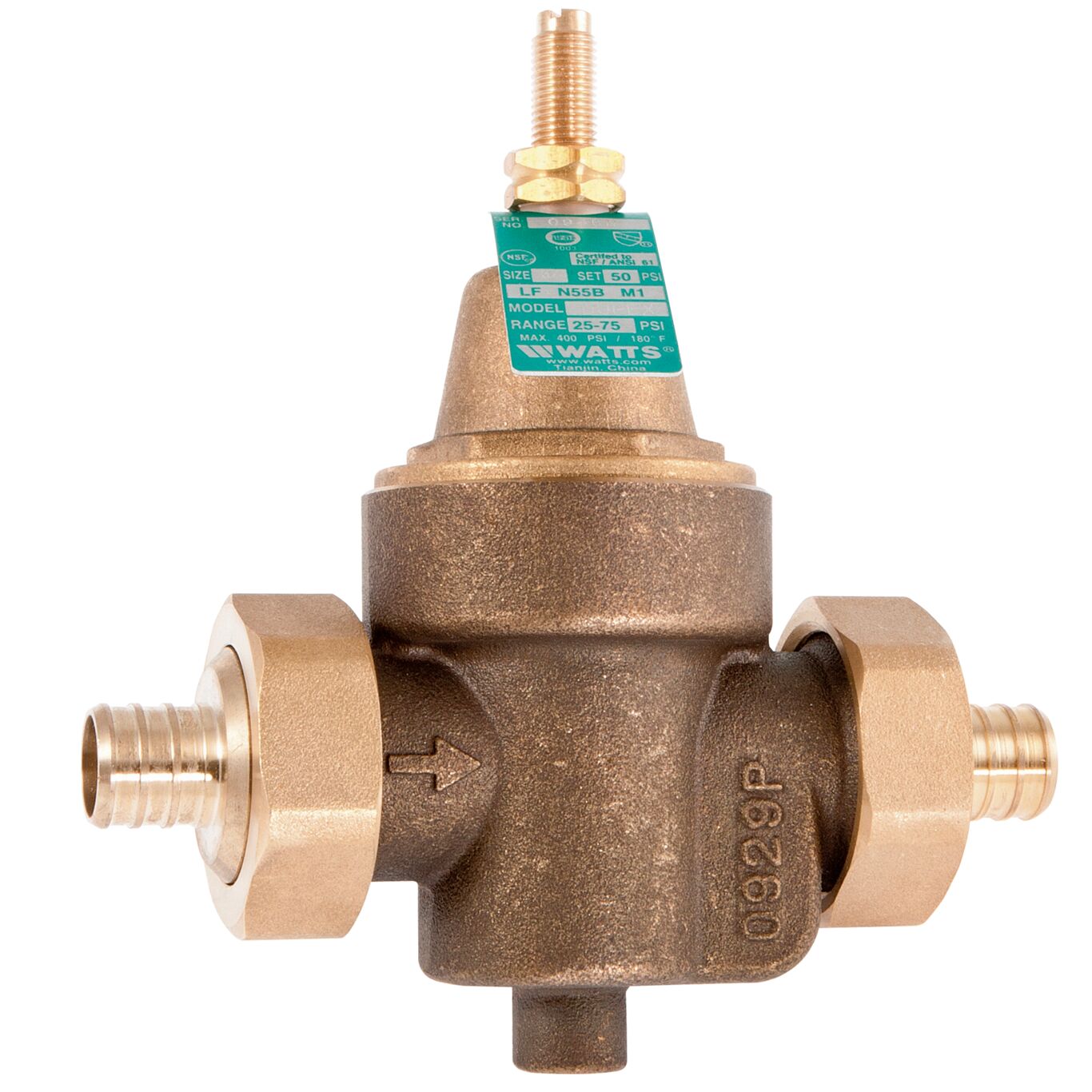

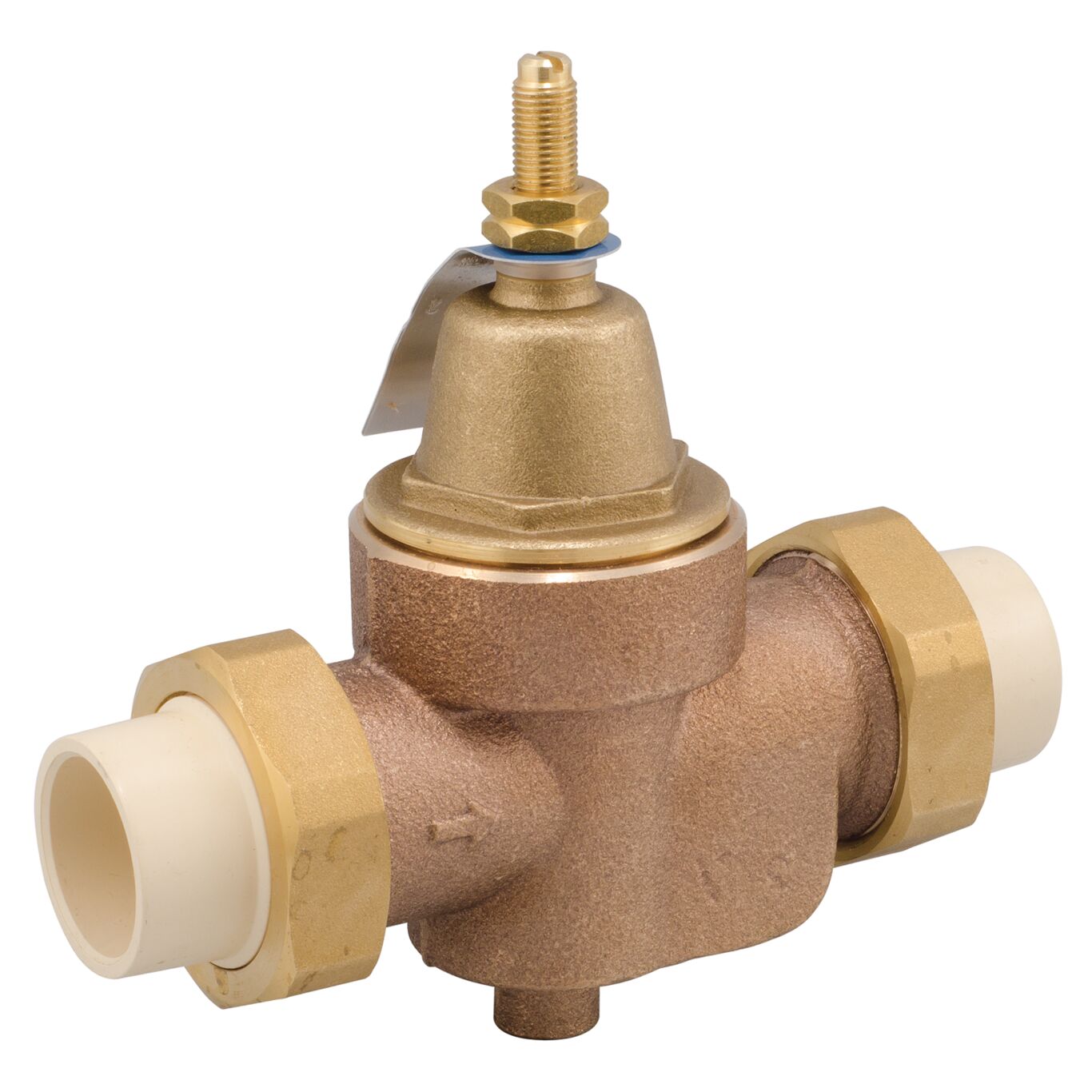

Series LFN55B Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free* brass body construction integral stainless steel strainer, thermoplastic seat, bronze sealed spring cage for waterworks pit installations and thermal expansion bypass. The LFN55B is available with either threaded, solder, PEX, quick-connect, CPVC, press, or cold expansion PEX (ASTM F1960) end connections. The standard pressure setting is 50 psi (345 kPa) with an adjustable reduced pressure range of 25 to 75 psi (172 to 517 kPa). Maximum working pressure is 400 psi (27.6 bar).
