Studio 804

Customer:

University of Kansas

Location:

Lawrence, KS

Scope:

Create a “green laboratory” – the Center for Design Research

What Client Needed:

The client wanted to achieve LEED Platinum status in order to be an example and a source of information about sustainability.

Solution:

KU chose a Watts RainCycle™ rainwater harvesting system. Watts RainCycle™ also provided a transducer, leaf filters and all plumbing supplies needed for the project

Result (ROI):

The Watts RainCycle™ system flushes toilets and keeps the interior green fern wall moist and alive throughout the year.

Summary:

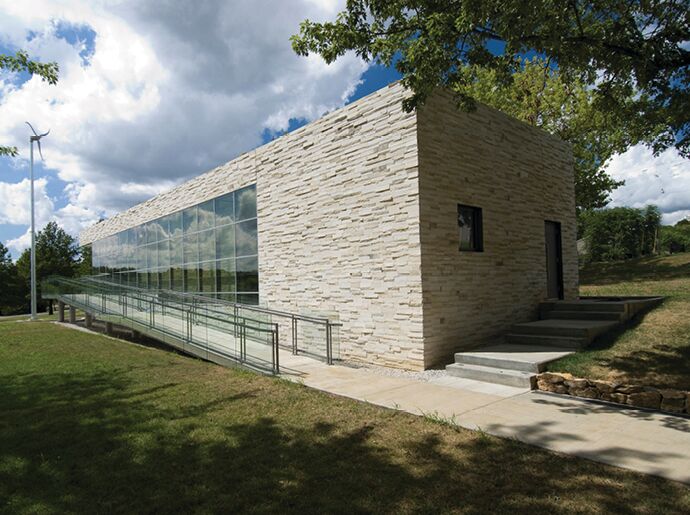

Professor Dan Rockhill and 23 students in the graduate design/build program, Studio 804, began designing the University of Kansas’ new Center for Design Research. “It had to serve a dual purpose, both as a meeting and presentation venue as well as a working laboratory, and to be a place that’s shared with the public as a source of information about sustainability,” said Gregory Thomas, CDR director and design professor at KU.

Inside the building is a conference room with a living “green wall.” Covered in fern and irrigated by the building’s Watts RainCycle™ rainwater harvesting system, the wall improves indoor air quality.

The Watts RainCycle™ system supplies water to flush toilets and keep the green wall lush. The system collects rainwater from the building’s flat roof. From there, it’s filtered and stored in an underground, 1,200-gallon storage tank. The storage tank is equipped with a pressure transducer. The device senses the level of water in the tank, providing a digital readout of tank volume. Also, if a dry spell is expected and the rainwater system can’t produce enough water for the green wall and toilets, the transducer will draw makeup water from the main supply.

Four times a day, a high efficiency, 1HP pump moves water from the rainwater cistern to the green wall. In addition to the tank and transducer, Watts RainCycle™ supplied four separate leaf filters, an expansion tank for the watering system, and all the plumbing supplies needed for the project.
