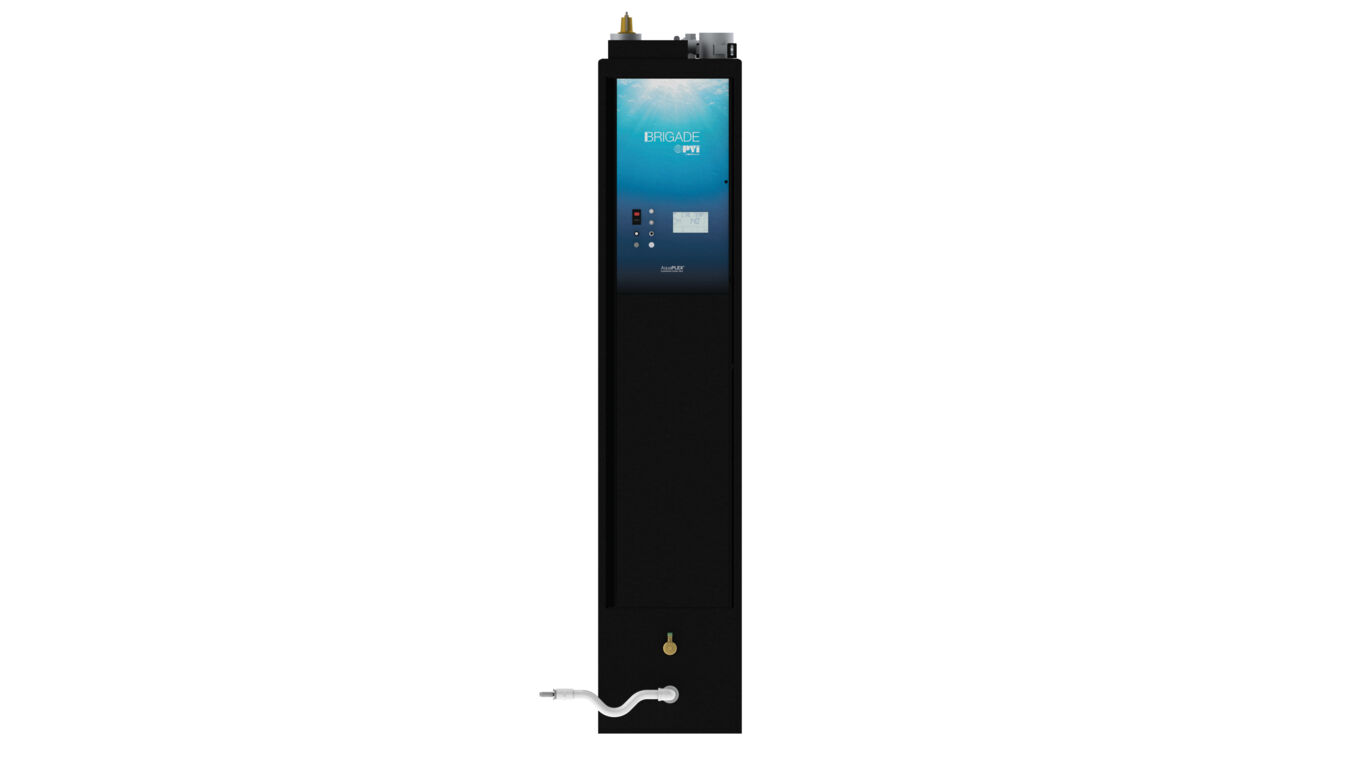

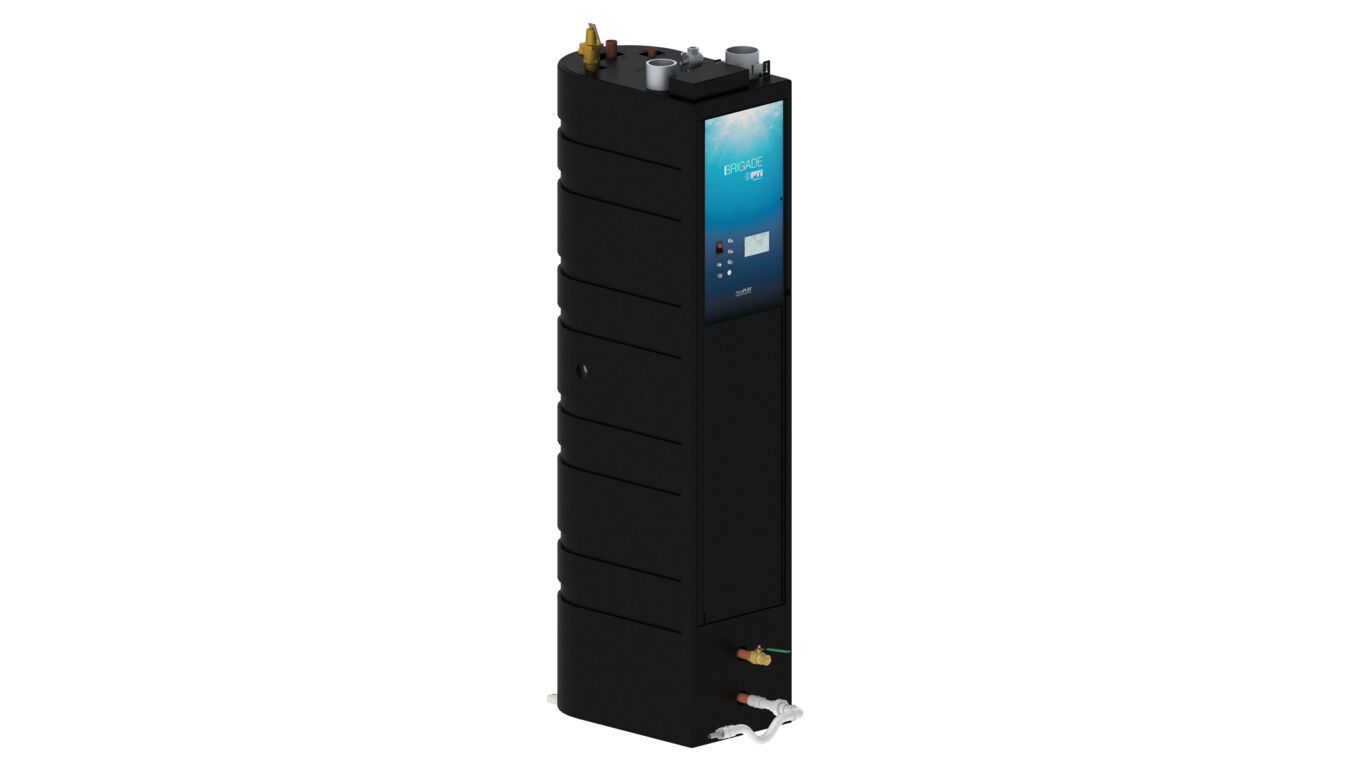

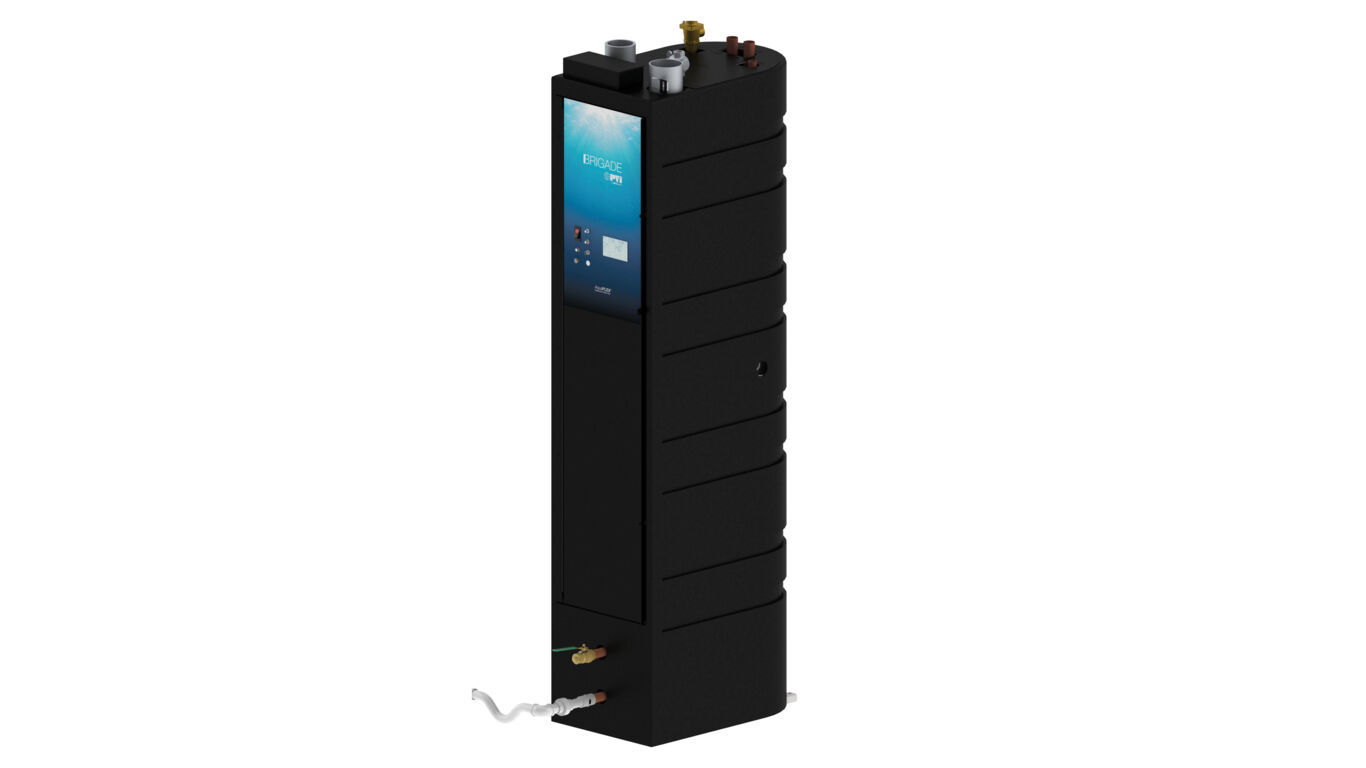

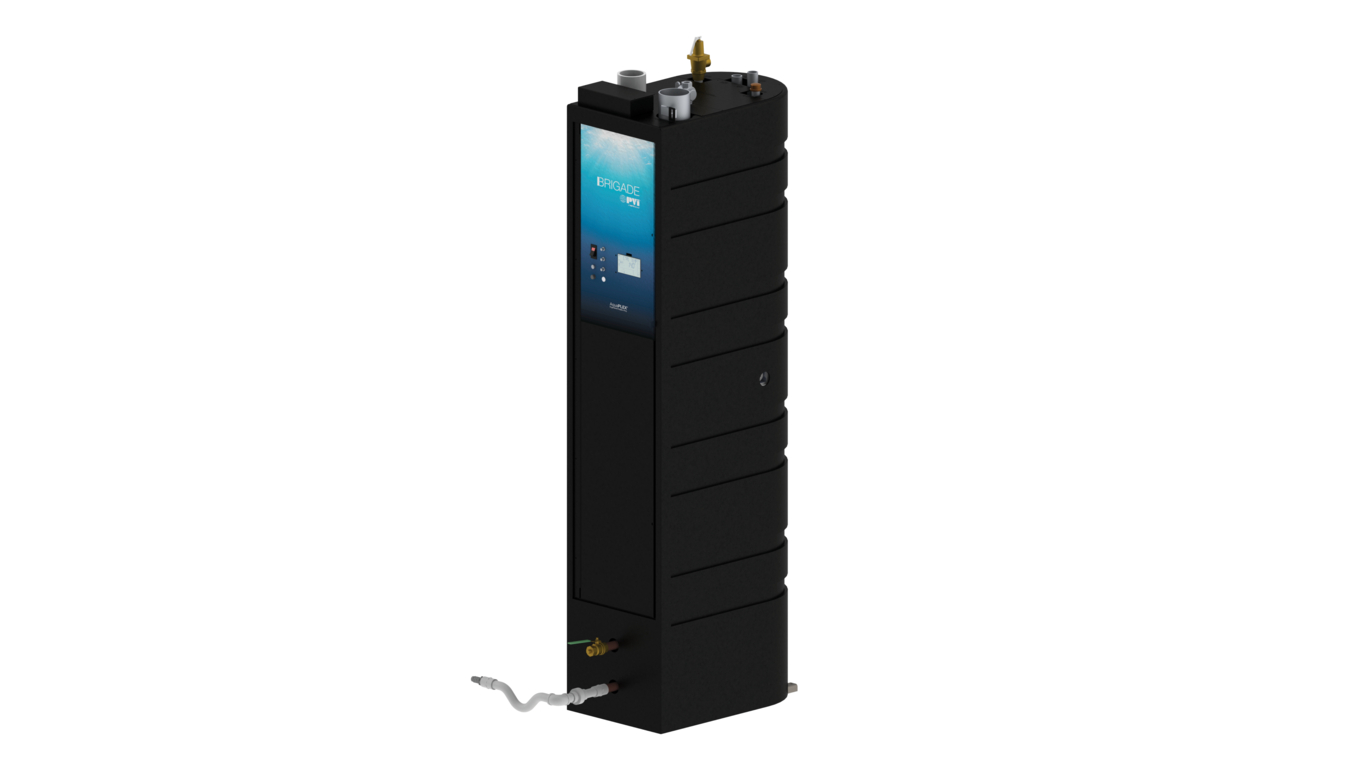

Brigade

A breakthrough in smart design, PVI’s Brigade is a powerful commercial water heater that delivers reliable hot water for demanding applications in a small footprint. Brigade’s high efficiency, durability and compact footprint will help owners and facility managers ensure their buildings have a long-lasting system that saves on space and operating costs. Ideal for a variety of applications including restaurants, K-12 schools, small office buildings, travel centers, grocery stores and convenience stores with gasoline.

Features and Benefits

Ultra-compact footprint

• 15’’ wide x 26’’ deep x 76’’ tall with all connections at the top for ease of installation
• 0" clearance from sides and rear, and 8" from top, 3" from front of unit (in closet installations)

Long service life

• AquaPLEX^® duplex stainless steel construction with performance-enhanced, high efficiency, patent-pending firetubes
• Eliminates the 3-4-year replacement cycle common to glass-lined water heaters
• Industry leading 6-year full vessel warranty

Dynamic Water Heating

• 25 gallons temperature buffer
• 233 gallons per hour from 40°F to 140°F
• 185°F maximum water temperature setpoint

Low maintenance, operating cost

• Up to 99% thermal efficiency
• High turndown (7:1) with spark ignition

AquaPLEX Corrosion Protection

• Highly durable AquaPLEX engineered duplex stainless steel storage tank and heat exchanger
• Corrosion-resistant in potable water at any temperature
• Highly resistant to chloride stress corrosion cracking
• No lining required
• Non-ferrous, removable tank connections
• No anode rods required or used

Warranty

• 6-year AquaPLEX tank and heat exchanger corrosion warranty
• One-year parts warranty

Certifications

• ENERGY STAR® certified
• SCAQMD Rule 1146.2 for ultra-low-NOx emissions
• Intertek / ETL Listed Mark:
• ANSI Z21.10.3
• CSA 4.3
• NSF/ ANSI 372 for low lead
• NSF 5
