LF25AUB-S-DU-GG-Z3 3/4
Part of the LF25AUB-Z3 Series
Ordering Code: 0009286
UPC: 098268330137

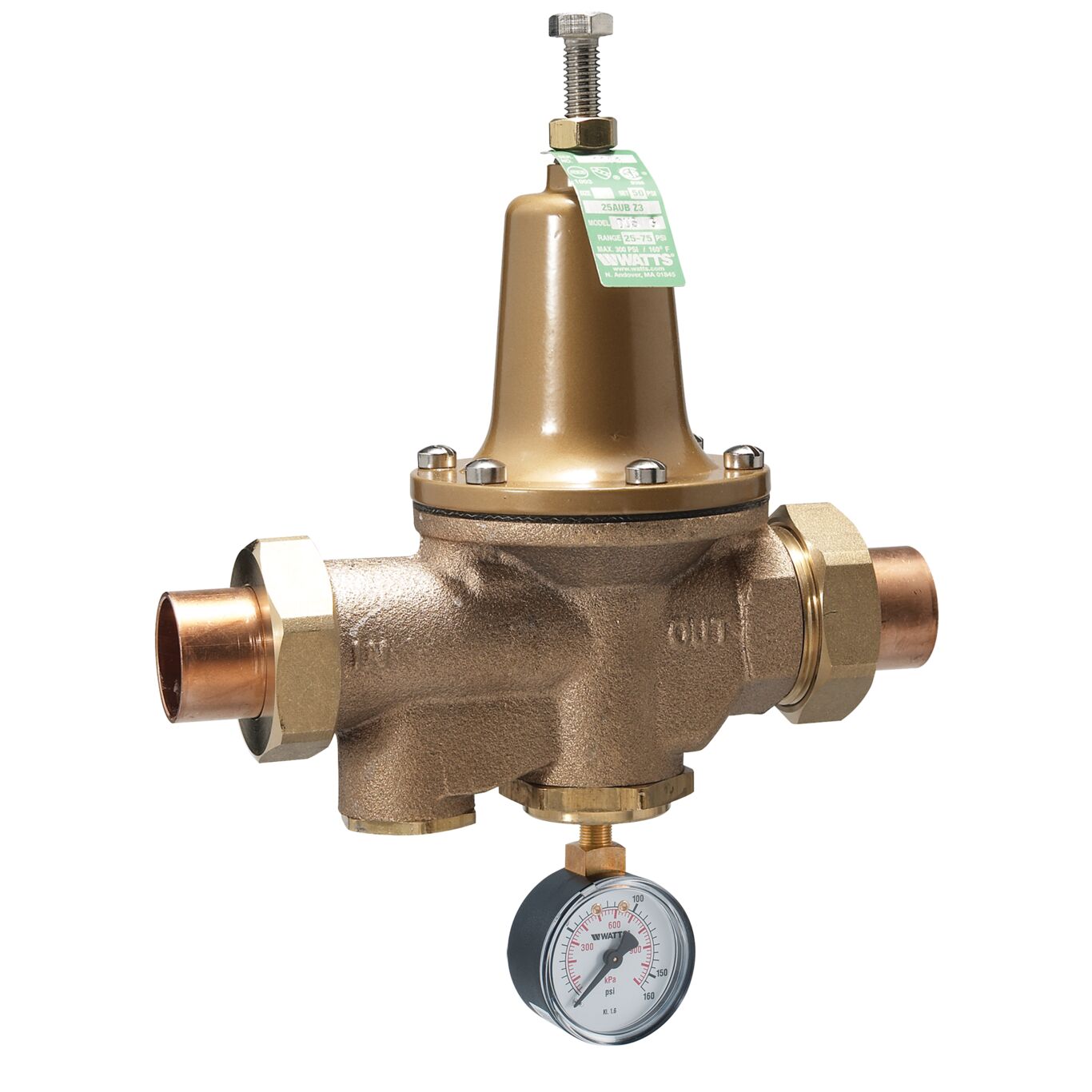

3/4 In Lead Free Water Pressure Reducing Valve, Double Union, Solder, Polymer Seat, Gauge Tapping, Gauge, Adjustable 25-75 psi
This 3/4 inch bronze water pressure reducing valve is equipped with gauge tapping and a 160 psi (11 bar) gauge. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, solder union inlet and outlet connections and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
Specifications | |
---|---|
EANUCCCode | 098268330137 |
MaximumOperatingTemperature-Fahrenheit | 180 |
MaximumWorkingPressure-BAR | 20.70 |
MaximumWorkingPressure-PSI | 300 |
MinimumTemperature-Celsius | 0.50 |
MinimumTemperature-Fahrenheit | 33 |
StandardReducedPressureSetting-BAR | 3.40 |
StandardReducedPressureSetting-PSI | 50 |
